Cross Nonwoven Cellulose SMT Wiper Roll High Absorbency Low Abrasion Resistance
High Absorbency SMT Wiper Roll
,Nonwoven Cellulose SMT Wiper Roll
,Low Abrasion Resistance SMT Wiper Roll

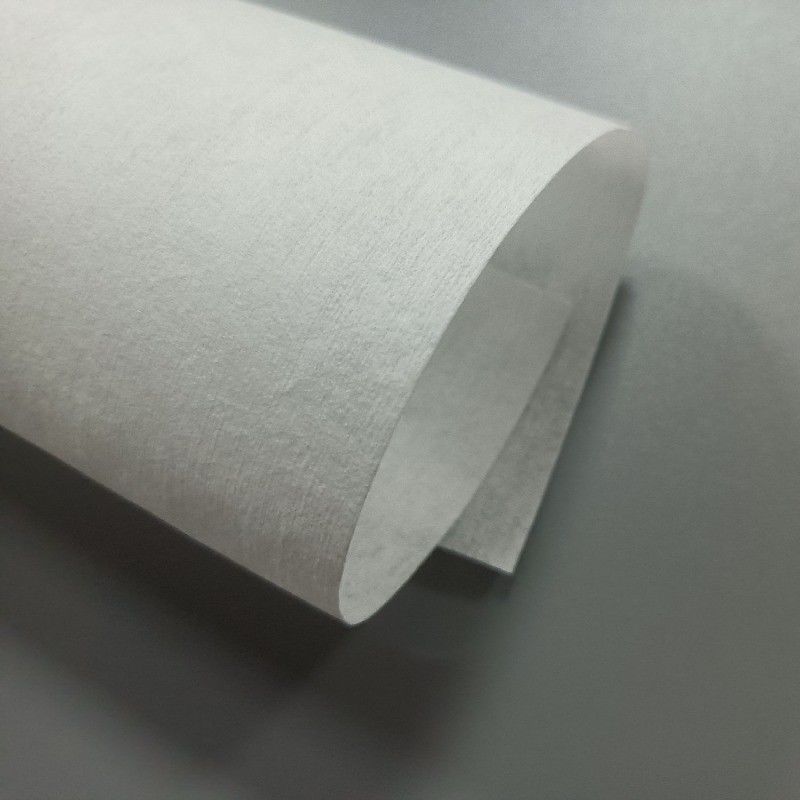

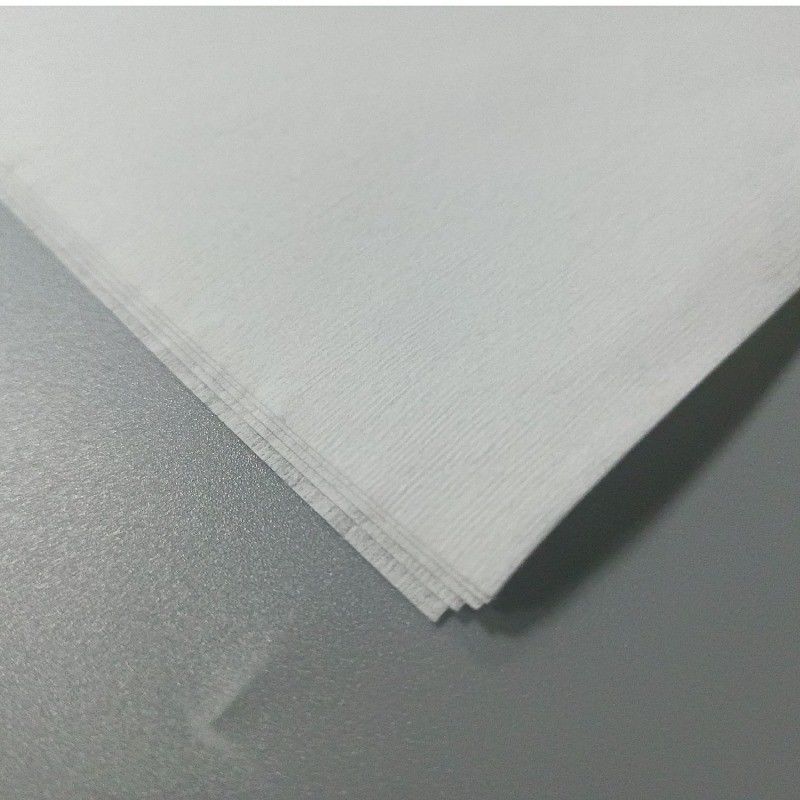

Cross lapping wood pulp spunlace nonwoven is a very popular material applied to industrial cleaning. It carries good absorption of liquid, and excellent vertical and horizontal tension.
Product Specification:
| item: | value: |
| Material | 55% woodpulp + 45% polyester |
| Feature | Sustainable, Stocked |
| Product name | Stencil Non-woven Wipes |
| Thickness | 0.3mm |
| Absorption Capacity | 5.2 g/g |
| Absorption Rate | < 1 sec |
| Color | White |

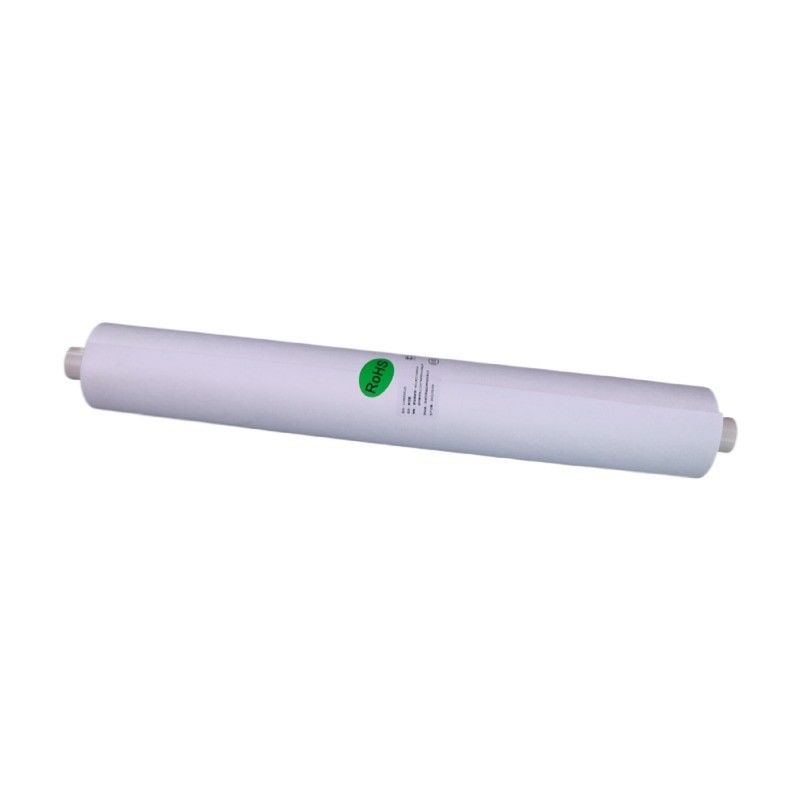

Product Name:SMT stencil cleaning wiper roll
Suitable Printer brand DEK,MPM,KME,PANA,SANYO,HITACHI,YAMAHA,TENRYU,FUJI,MINAMI,EKRA,JUKI etc
Material 55%woodpulp+45%polyester (typical), viscose+polyester,

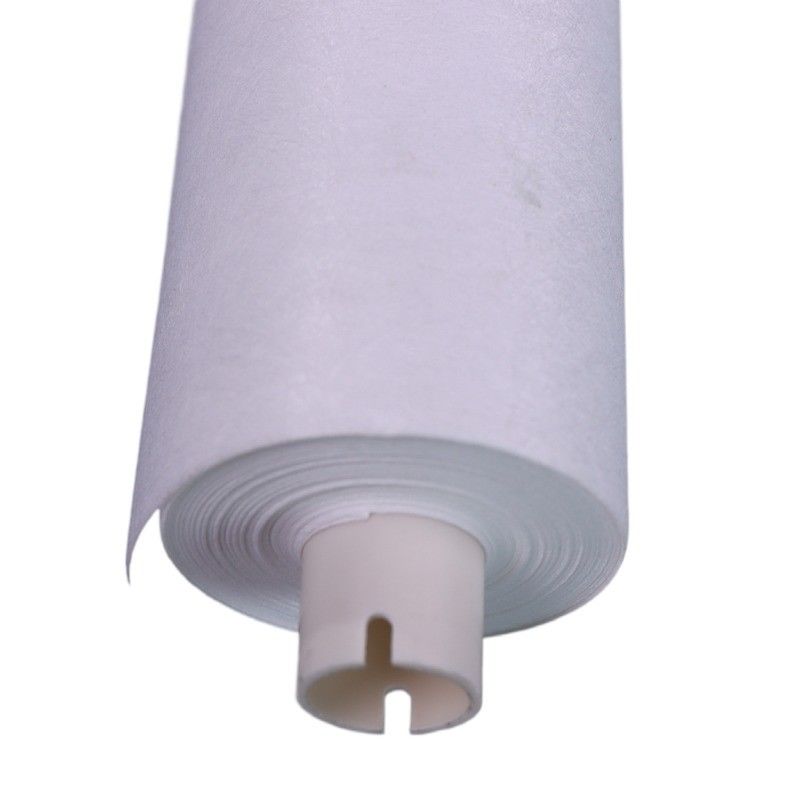

Core type :Paper core/PVC plastic core
Package :1roll/PE shrinkable film
the most impoartant parameter to quote
material composition,fabric width,fabric length, core type,core length,inner diameter of core, if notches needed.
Usage
Removing solder paste to clean SMT printer
Feature:
1.High absorbent and exceptional low lint levels.
2.Remove the excess solder paste, adhesive and solvents that can ruin any PCBs.
3.High strength
4.Roll can be customized to suit your exact requirement.
AVAILABLE FOR ALL SMT SCREEN PRINTERS
Myesde® is available for all major SMT screen printers. Custom sizes can be manufactured with short lead times.
Myesde can also be used in other application.
Model:
| Application Machine Type | SMT Silk Screen Roller Wipes Spec.(mm x m) | Paper tube/PVC tube Core(mm) |
| MPM | 300x10 | 19.5x455 |
| MPM | 443x10 | 19.5x455 |
| MPM | 600x10 | 19.5x615 |
| DEK | 300x10 | 19.5x530 |
| DEK | 350x10 | 19.5x530 |
| DEK | 490x7 | 19.5x530 |
| DEK | 500x10 | 19.5x530 |
| DEK | 500x10 | 19.5x530 |
| DEK | 510x9 | 19.5x530 |
| DEK | 520x10 | 19.5x530 |
| MINAMI | 270x5 | 8x290 |
| MINAMI | 350x6 | 8x370 |
| KME | 200x30 | 38x350 |
| KME | 270x30 | 38x270 |
| KME | 340x15 | 19.5x350 |
| KME | 480x30 | 38x480 |
| KME | 545x15 | 19.5x545 |
| PANASONIC | 270x10 | 38 X 280 |
| PANASONIC | 360x10 | 38x360 |
| PANASONIC | 350x20 | 38x355 |
| FUJI | 400x11 | 25x400 |
| FUJI | 500x11 | 25x500 |
| PANA | 360x12 | 38x360 |
| PANA | 410x36 | 38x410 |
| YAMAHA | 410x30 | 25.5x420 |
| YAMAHA | 350x10 | 25.5x350 |
| EKRA | 300x8 | 13.5x300 |
| EKRA | 450x8 | 13.5x450 |
| ASKA | 350x8 | 14x450 |
| ASKA | 430x8 | 14x450 |
| SAMSUNG | 400x7 | 20x460 |
| More other sizes available upon request! | ||
If you also think it's a good idea to minimize solder defects, contact us and we will help you to successfully upgrade your stencil cleaning process.
Details:
We are one of the most reliable companies in this domain and are into offering SMT Wiper Roll.
