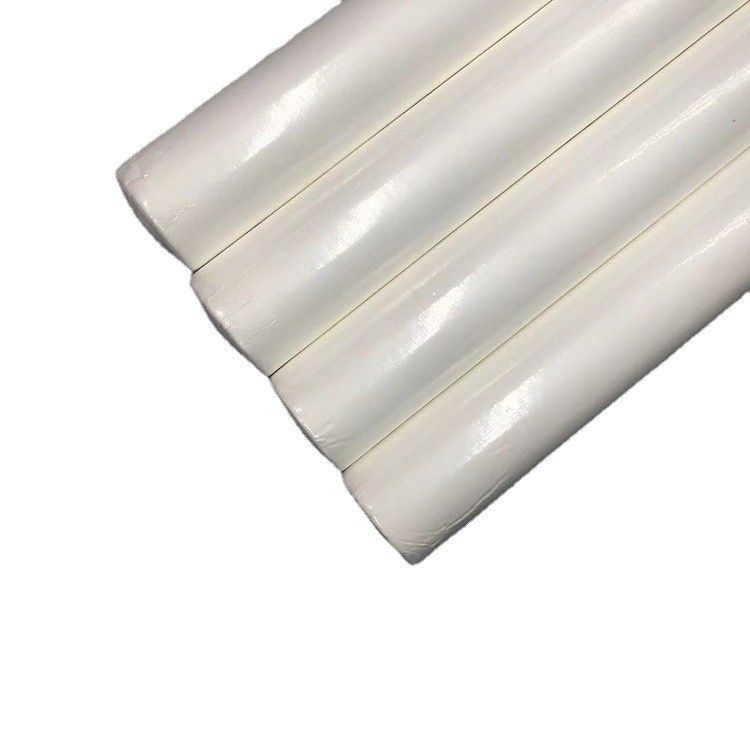

Nonwoven Polyester Cellulose Wipes SMT Wood Pulp Stencil Wiper Roll
Wood pulp stencil wiper roll
,SMT stencil wiper roll
,nonwoven polyester cellulose wipes
Factory 55% Cellulose 45% Polyester SMT Cleaning Wipe Stencil Roll
Description:
To maximise pre-placement yield, it is imperative to perform regular, effective stencil cleaning. As high-density applications and ultra fine pitch assemblies become the norm, cleaning performance beyond conventional paper-based cleaning materials is required.
We used lint free wipes that is low lint levels, an ability to clean a variety of apertures, rapid dispense, effective wicking and ongoing productivity.
Product Specification:
| item: | value: |
| Material | 55% woodpulp + 45% polyester |
| Feature | Sustainable, Stocked |
| Product name | Stencil Non-woven Wipes |
| Thickness | 0.3mm |
| Absorption Capacity | 5.2 g/g |
| Absorption Rate | < 1 sec |
| Color | White |
Product Highlights:
Appearance: no dirt, neat winding: the width of the concave and convex edge of the winding is less than 1mm; the trimming is good,No burrs.
Size: 9*9, 6*6, 4*4
Gram weight: 56g/m ‡ 5% (according to customer requirements)
Feature:
1. Dust-free paper has unique physical properties, such as high elasticity, softness, hand feeling and excellent drape.
2. With extremely high water absorption and good water retention performance, wiping paper is widely used in electronic automation production and other fields.
Model:
| Application Machine Type | SMT Silk Screen Roller Wipes Spec.(mm x m) | Paper tube/PVC tube Core(mm) |
| MPM | 300x10 | 19.5x455 |
| MPM | 443x10 | 19.5x455 |
| MPM | 600x10 | 19.5x615 |
| DEK | 300x10 | 19.5x530 |
| DEK | 350x10 | 19.5x530 |
| DEK | 490x7 | 19.5x530 |
| DEK | 500x10 | 19.5x530 |
| DEK | 500x10 | 19.5x530 |
| DEK | 510x9 | 19.5x530 |
| DEK | 520x10 | 19.5x530 |
| MINAMI | 270x5 | 8x290 |
| MINAMI | 350x6 | 8x370 |
| KME | 200x30 | 38x350 |
| KME | 270x30 | 38x270 |
| KME | 340x15 | 19.5x350 |
| KME | 480x30 | 38x480 |
| KME | 545x15 | 19.5x545 |
| PANASONIC | 270x10 | 38 X 280 |
| PANASONIC | 360x10 | 38x360 |
| PANASONIC | 350x20 | 38x355 |
| FUJI | 400x11 | 25x400 |
| FUJI | 500x11 | 25x500 |
| PANA | 360x12 | 38x360 |
| PANA | 410x36 | 38x410 |
| YAMAHA | 410x30 | 25.5x420 |
| YAMAHA | 350x10 | 25.5x350 |
| EKRA | 300x8 | 13.5x300 |
| EKRA | 450x8 | 13.5x450 |
| ASKA | 350x8 | 14x450 |
| ASKA | 430x8 | 14x450 |
| SAMSUNG | 400x7 | 20x460 |
| More other sizes available upon request! | ||
