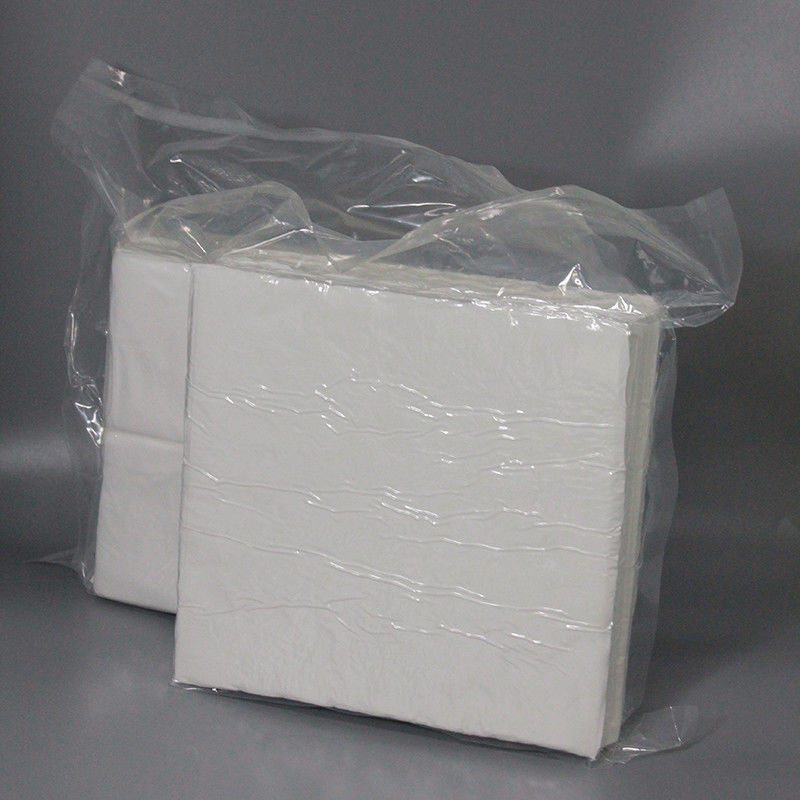

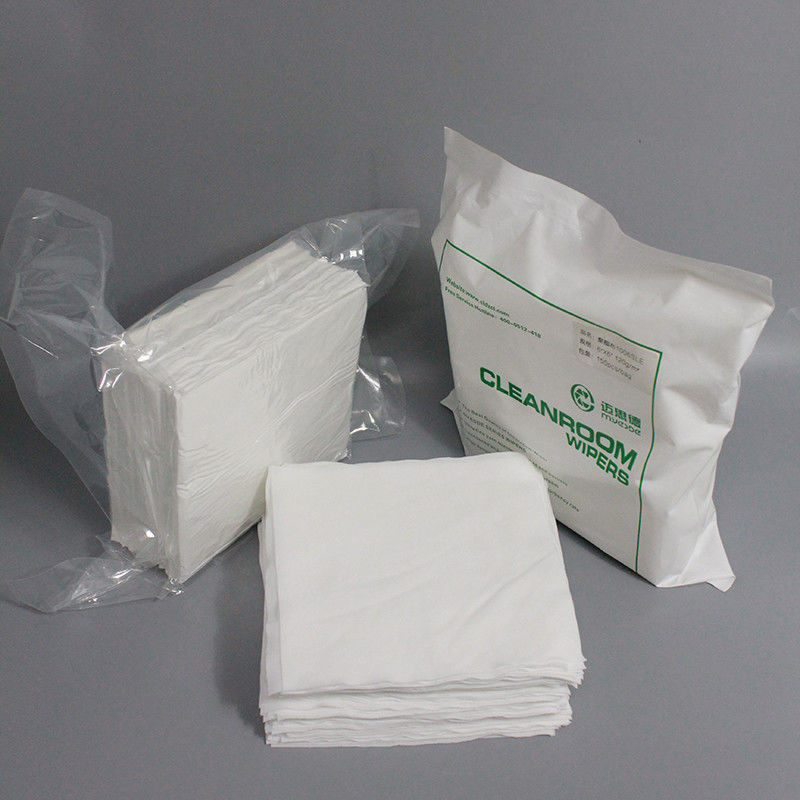

Cleanroom Lint Free Microfiber Clean Wipers Dust -Free Wipes Cleaning Cloth For Electronics Factory Circuit Board
Cleanroom Lint Free Microfiber Clean Wipers Dust -Free Wipes Cleaning Cloth For Electronics Factory Circuit Board
Description:
They are comprised of 75% Polyester and 25% Nylon.Laser cut/Heat cut/Ultrasonic sealed edge maximize reduces fiber contamination.Extremely low levels of particulate and extractable counts.Excellent absorbency and wiping efficiency.
Feature:
• Ultra-low particle and fiber release
• Free of Silicon, Amides, and DOP contamination
• Leave no scratch on body's sensitive surface
• Chemically compatible with IPA, Acetone and other solvents
• Complies with RoHS requirements
Benefits:
• Silk-smooth surface finish for use on even the most delicate surfaces
• Durable abrasion resistance for use when removing microcontamination from large areas and irregular surfaces
• Best-in-class fluid absorption
• Leaves a polished finish on surfaces such as stainless steel
• Available in a range of edge finishes to meet your application requirements
Technical Data:
Attribute; (units) | Value ** | Test Method | |||||
Basis weight; nominal (g/m2) | 173 | MSD-QI-QS-007 A0 | |||||
Absorbency in water | IEST-RP-CC004.3 | ||||||
Intrinsic; (mL/g) | 2.41 | ||||||
Extrinsic; (mL/m2) | 416.93 | ||||||
Sorptive rate; (seconds) | 1 | IEST-RP-CC004.3 | |||||
Non-volatile residue, NVR | IEST-RP-CC004.3 | ||||||
In deionized water; (g/m2) | 0.014 | ||||||
In isopropanol; (g/m2) | 0.012 | ||||||
Specific ions | IEST-RP-CC004.3 | ||||||
Sodium; (ppm) | 0.012 | ||||||
Chloride; (ppm) | 0.062 | ||||||
Potassium; (ppm) | 0.094 | ||||||
Particles, readily releasable | |||||||
APC: ≥0.3μm(Ea/ft3) | 135 | IEST-RP-CC003.3 | |||||
LPC:≥0.5μm(106/m2 ) | 16 | IEST-RP-CC004.3 |
Applications:
• Applying and removing lubricants, adhesives, residues and other solutions including disinfectants.

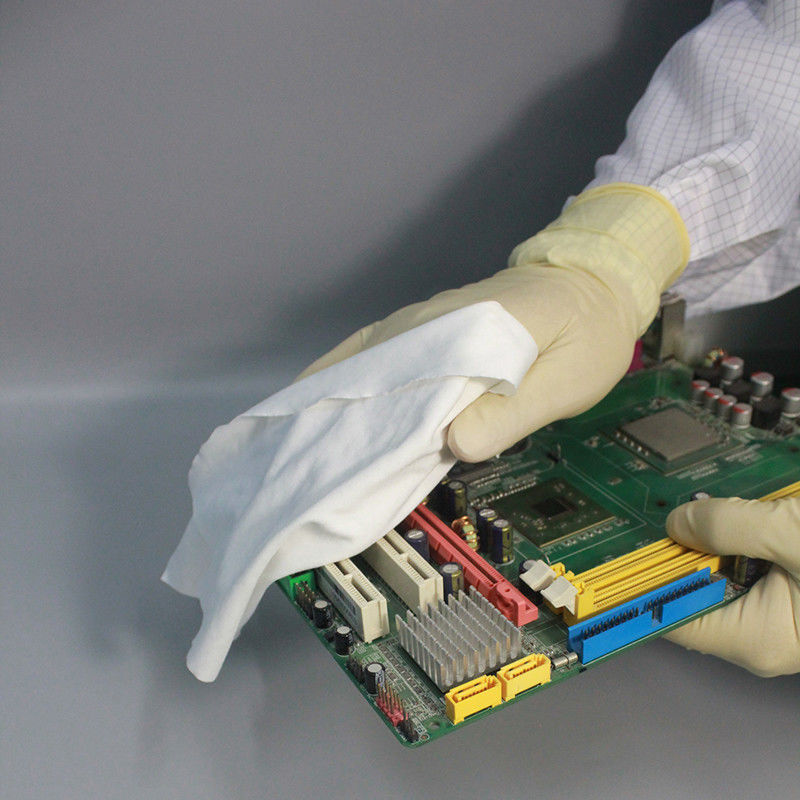

• Wiping and cleaning surfaces, equipment and parts.
• Cleaning with solvents such as isopropyl alcohol(IPA), ethanol, acetone, and degreasers.
Cleanroom Environment:
• ISO Class 3 – 8
• Class 1 – 100,000
Shelf Life
• Non-Sterile (Dry) – 3 years from date of manufacture
Products: | |||||||||||
Number | Description | Sterile | Packaging | Case | |||||||
Dry wipes | |||||||||||
101040086-01 | 4" x 4"dry | 400 wipes/bag | 20 bags | ||||||||
101040044-01 | 9" x9" dry | 150 wipes/bag | 10 bags | ||||||||
101040044-10 | 9" x 9"dry, SterileWipe | ★ | 150 wipes/bag | 10 bags |
Notes:
1) Valid product comparisons may only be obtained through side-by-side testing in the same test facility, under similar conditions.
2) The information presented here is applicable to the part numbers shown above, as well as to any product containing the same materials and produced under the same conditions.
3) Size can be customized according to customer requirements.
4) Stacked, Bulk and Folded method can be customized according to customer requirements.
